CTBcallbackTargetBase Class Reference

Abstract base class for callback targets. **. More...

#include "CTBcallbackBase.hxx"

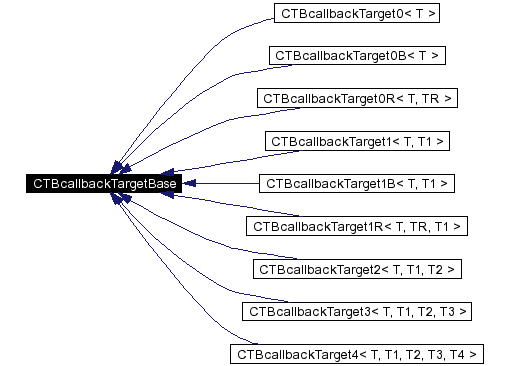

Inheritance diagram for CTBcallbackTargetBase:

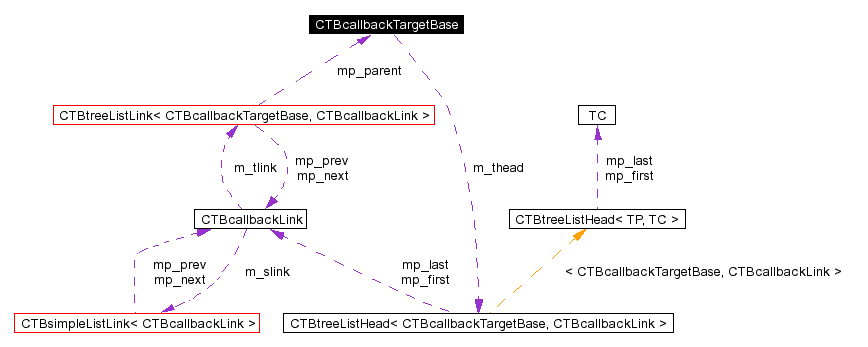

[legend]Collaboration diagram for CTBcallbackTargetBase:

[legend]List of all members.

Public Methods
	CTBcallbackTargetBase ()
	CTBcallbackTargetBase (const CTBcallbackTargetBase &rhs)
virtual	~CTBcallbackTargetBase ()
int	NConnect () const
void	Disconnect ()
CTBcallbackTargetBase &	operator= (const CTBcallbackTargetBase &rhs)
bool	operator! () const
	operator bool () const
Protected Methods
void	Connect (CTBcallbackSourceBase &source)
void	Disconnect (CTBcallbackSourceBase &source)
virtual void	Execute (void *p_arg) const=0
Protected Attributes
CTBtreeListHead< CTBcallbackTargetBase, CTBcallbackLink >	m_thead
Friends
class	CTBcallbackLink
class	CTBcallbackSourceBase

---

Detailed Description

Abstract base class for callback targets. **.

Definition at line 54 of file CTBcallbackBase.hxx.

---

Constructor & Destructor Documentation

CTBcallbackTargetBase::CTBcallbackTargetBase (  )  [inline]

Default constructor. Definition at line 58 of file CTBcallbackBase.icc.

CTBcallbackTargetBase::CTBcallbackTargetBase (  const CTBcallbackTargetBase & rhs )  [inline]

Copy constructor. Definition at line 65 of file CTBcallbackBase.icc.

CTBcallbackTargetBase::~CTBcallbackTargetBase (  )  [virtual]

Virtual destructor. Definition at line 104 of file CTBcallbackBase.cxx.

---

Member Function Documentation

int CTBcallbackTargetBase::NConnect (  )  const

Returns number of active connections. Definition at line 114 of file CTBcallbackBase.cxx.

void CTBcallbackTargetBase::Disconnect (  )

Disconnect all sources. Definition at line 131 of file CTBcallbackBase.cxx. Referenced by CTBcallbackTarget1R::Disconnect(), CTBcallbackTarget0R::Disconnect(), CTBcallbackTarget1B::Disconnect(), CTBcallbackTarget0B::Disconnect(), CTBcallbackTarget4::Disconnect(), CTBcallbackTarget3::Disconnect(), CTBcallbackTarget2::Disconnect(), CTBcallbackTarget1::Disconnect(), CTBcallbackTarget0::Disconnect(), operator=(), and ~CTBcallbackTargetBase().

CTBcallbackTargetBase & CTBcallbackTargetBase::operator= (  const CTBcallbackTargetBase & rhs )

Assignment operator, duplicate all connections from rhs. Definition at line 151 of file CTBcallbackBase.cxx. Referenced by CTBcallbackTargetBase().

bool CTBcallbackTargetBase::operator! (  )  const [inline]

Returns true if no sources connected. Definition at line 75 of file CTBcallbackBase.icc.

CTBcallbackTargetBase::operator bool (  )  const [inline]

Returns true if at least one sources connected. Definition at line 83 of file CTBcallbackBase.icc.

void CTBcallbackTargetBase::Connect (  CTBcallbackSourceBase & source )  [protected]

Connect source source. Definition at line 173 of file CTBcallbackBase.cxx. Referenced by CTBcallbackTarget1R::Connect(), CTBcallbackTarget0R::Connect(), CTBcallbackTarget1B::Connect(), CTBcallbackTarget0B::Connect(), CTBcallbackTarget4::Connect(), CTBcallbackTarget3::Connect(), CTBcallbackTarget2::Connect(), CTBcallbackTarget1::Connect(), and CTBcallbackTarget0::Connect().

void CTBcallbackTargetBase::Disconnect (  CTBcallbackSourceBase & source )  [protected]

Disconnect from source source. Definition at line 184 of file CTBcallbackBase.cxx.

virtual void CTBcallbackTargetBase::Execute (  void * p_arg )  const [protected, pure virtual]

Reimplemented in CTBcallbackTarget0, CTBcallbackTarget1, CTBcallbackTarget2, CTBcallbackTarget3, CTBcallbackTarget4, CTBcallbackTarget0B, CTBcallbackTarget1B, CTBcallbackTarget0R, and CTBcallbackTarget1R.

---

Friends And Related Function Documentation

friend class CTBcallbackLink [friend]

Definition at line 56 of file CTBcallbackBase.hxx. Referenced by Connect(), and operator=().

friend class CTBcallbackSourceBase [friend]

Definition at line 57 of file CTBcallbackBase.hxx.

---

Member Data Documentation

CTBtreeListHead<CTBcallbackTargetBase,CTBcallbackLink> CTBcallbackTargetBase::m_thead [protected]

Definition at line 84 of file CTBcallbackBase.hxx.

---

The documentation for this class was generated from the following files:

• CTBcallbackBase.cxx
• CTBcallbackBase.hxx
• CTBcallbackBase.icc

---
