CTBcallbackSourceBase Class Reference

Base class for callback sources. **. More...

#include "CTBcallbackBase.hxx"

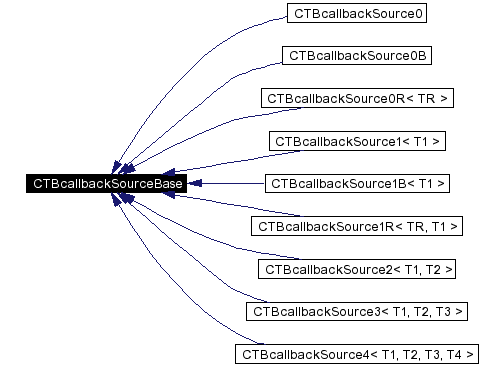

Inheritance diagram for CTBcallbackSourceBase:

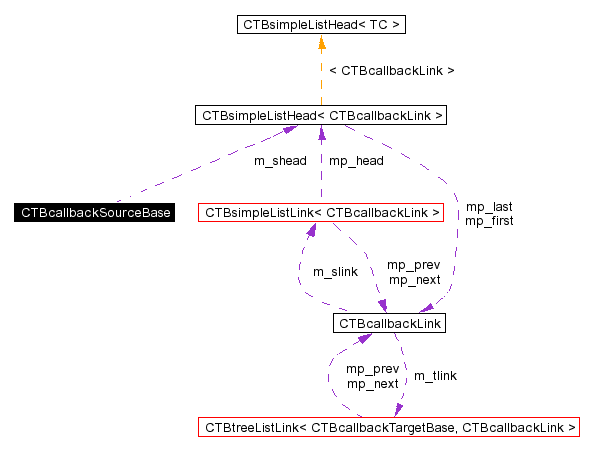

[legend]Collaboration diagram for CTBcallbackSourceBase:

[legend]List of all members.

Public Methods
	CTBcallbackSourceBase ()
	CTBcallbackSourceBase (const CTBcallbackSourceBase &rhs)
virtual	~CTBcallbackSourceBase ()
int	NConnect () const
CTBcallbackSourceBase &	operator= (const CTBcallbackSourceBase &rhs)
bool	operator! () const
	operator bool () const
Protected Methods
void	Execute (void *p_arg) const
Protected Attributes
CTBsimpleListHead< CTBcallbackLink >	m_shead
Friends
class	CTBcallbackLink
class	CTBcallbackTargetBase

---

Detailed Description

Base class for callback sources. **.

Definition at line 23 of file CTBcallbackBase.hxx.

---

Constructor & Destructor Documentation

CTBcallbackSourceBase::CTBcallbackSourceBase (  )  [inline]

Default constructor. Definition at line 18 of file CTBcallbackBase.icc.

CTBcallbackSourceBase::CTBcallbackSourceBase (  const CTBcallbackSourceBase & rhs )  [inline]

Copy constructor. Is a noop !! Definition at line 25 of file CTBcallbackBase.icc.

CTBcallbackSourceBase::~CTBcallbackSourceBase (  )  [virtual]

Virtual destructor. Definition at line 30 of file CTBcallbackBase.cxx.

---

Member Function Documentation

int CTBcallbackSourceBase::NConnect (  )  const

Returns number of active connections. Definition at line 48 of file CTBcallbackBase.cxx. Referenced by CTBcallbackSource1R::operator()(), CTBcallbackSource0R::operator()(), CTBcallbackSource1B::operator()(), and CTBcallbackSource0B::operator()().

CTBcallbackSourceBase & CTBcallbackSourceBase::operator= (  const CTBcallbackSourceBase & rhs )  [inline]

Assignment operator. Is a noop !! Definition at line 33 of file CTBcallbackBase.icc.

bool CTBcallbackSourceBase::operator! (  )  const [inline]

Returns true if no targets connected. Definition at line 42 of file CTBcallbackBase.icc.

CTBcallbackSourceBase::operator bool (  )  const [inline]

Returns true if at least one targets connected. Definition at line 50 of file CTBcallbackBase.icc.

void CTBcallbackSourceBase::Execute (  void * p_arg )  const [protected]

Execute a callback. Definition at line 65 of file CTBcallbackBase.cxx. Referenced by CTBcallbackSource1R::operator()(), CTBcallbackSource0R::operator()(), CTBcallbackSource1B::operator()(), CTBcallbackSource0B::operator()(), CTBcallbackSource4::operator()(), CTBcallbackSource3::operator()(), CTBcallbackSource2::operator()(), CTBcallbackSource1::operator()(), and CTBcallbackSource0::operator()().

---

Friends And Related Function Documentation

friend class CTBcallbackLink [friend]

Definition at line 25 of file CTBcallbackBase.hxx.

friend class CTBcallbackTargetBase [friend]

Definition at line 26 of file CTBcallbackBase.hxx.

---

Member Data Documentation

CTBsimpleListHead<CTBcallbackLink> CTBcallbackSourceBase::m_shead [protected]

Definition at line 49 of file CTBcallbackBase.hxx.

---

The documentation for this class was generated from the following files:

• CTBcallbackBase.cxx
• CTBcallbackBase.hxx
• CTBcallbackBase.icc

---
