CTBtreeListHead Class Template Reference

List header for a doubly linked list (no header pointer in element). More...

#include <CTBtreeList.hxx>

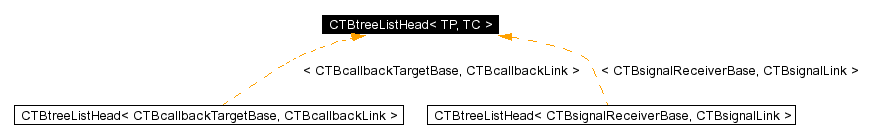

Inheritance diagram for CTBtreeListHead:

[legend]Collaboration diagram for CTBtreeListHead:

[legend]List of all members.

Public Methods
	CTBtreeListHead ()
	~CTBtreeListHead ()
TC *	First () const
TC *	Last () const
bool	operator! () const
	operator bool () const
Private Methods
	CTBtreeListHead (const CTBtreeListHead< TP, TC > &rhs)
CTBtreeListHead< TP, TC > &	operator= (const CTBtreeListHead< TP, TC > &rhs)
Private Attributes
TC *	mp_first
TC *	mp_last
Friends
class	CTBtreeListLink< TP, TC >

---

Detailed Description

template<class TP, class TC>
class CTBtreeListHead< TP, TC >

List header for a doubly linked list (no header pointer in element).

For a detailed description see class CTBtreeListLink .

Definition at line 72 of file CTBtreeList.hxx.

---

Constructor & Destructor Documentation

template<class TP, class TC> CTBtreeListHead< TP, TC >::CTBtreeListHead (  )  [inline]

Default constructor, results in empty list. Definition at line 324 of file CTBtreeList.icc.

template<class TP, class TC> CTBtreeListHead< TP, TC >::~CTBtreeListHead (  )  [inline]

Destructor. The list must be empty by the time the destructor is executed. It is the responsibility of the destructor of the class embedding the CTBtreeListHead object to remove all elements from the list and decide about ownership and live time of those objects. If the embedding class does not control the live time of the list objects a typical cleanup code look like hd::~hd() { while (m_head) m_head.First()->Remove(&el::m_link, &hd::m_head); } If the embedding class owns the linked objects and is therefore obliged to delete them a typical cleanup code look like hd::~hd() { while (m_head) delete m_head.First(); } Definition at line 358 of file CTBtreeList.icc.

template<class TP, class TC> CTBtreeListHead< TP, TC >::CTBtreeListHead (  const CTBtreeListHead< TP, TC > & rhs )  [private]

---

Member Function Documentation

template<class TP, class TC> TC * CTBtreeListHead< TP, TC >::First (  )  const [inline]

Returns a pointer to the first list element, or null if empty. A typical head-to-tail traversal of a list is implemented like for (el* p = m_head.First(); p; p = p->m_link.Next()) {...} Definition at line 373 of file CTBtreeList.icc. Referenced by CTBcallbackTargetBase::Disconnect(), and CTBcallbackTargetBase::NConnect().

template<class TP, class TC> TC * CTBtreeListHead< TP, TC >::Last (  )  const [inline]

Returns a pointer to the last list element, or null if empty. A typical tail-to-head traversal of a list is implemented like for (el* p = m_head.Last(); p; p = p->m_link.Prev()) {...} Definition at line 388 of file CTBtreeList.icc.

template<class TP, class TC> bool CTBtreeListHead< TP, TC >::operator! (  )  const [inline]

Returns true if list is empty. Definition at line 397 of file CTBtreeList.icc.

template<class TP, class TC> CTBtreeListHead< TP, TC >::operator bool (  )  const [inline]

Returns true if at least one element in list. Definition at line 406 of file CTBtreeList.icc.

template<class TP, class TC> CTBtreeListHead<TP,TC>& CTBtreeListHead< TP, TC >::operator= (  const CTBtreeListHead< TP, TC > & rhs )  [private]

---

Friends And Related Function Documentation

template<class TP, class TC> friend class CTBtreeListLink< TP, TC > [friend]

Definition at line 74 of file CTBtreeList.hxx.

---

Member Data Documentation

template<class TP, class TC> TC* CTBtreeListHead::mp_first [private]

Definition at line 97 of file CTBtreeList.hxx.

template<class TP, class TC> TC* CTBtreeListHead::mp_last [private]

Definition at line 98 of file CTBtreeList.hxx.

---

The documentation for this class was generated from the following files:

• CTBtreeList.hxx
• CTBtreeList.icc

---
