CTBcallbackTarget0B Class Template Reference

Callback target for callbacks with no argument and a boolean return. More...

#include <CTBcallbackB.hxx>

Inheritance diagram for CTBcallbackTarget0B:

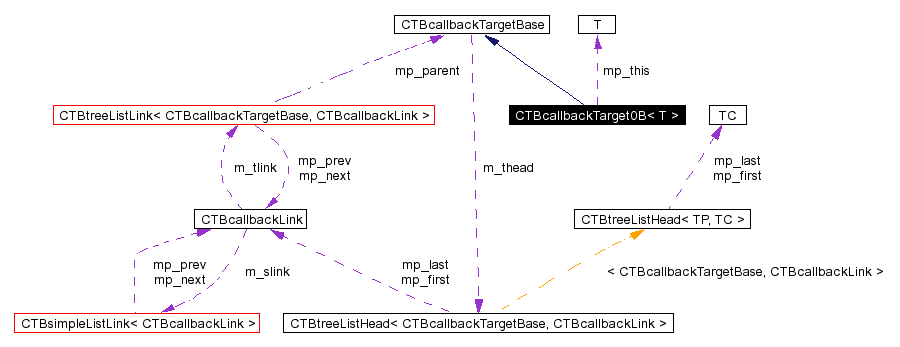

[legend]Collaboration diagram for CTBcallbackTarget0B:

[legend]List of all members.

Public Methods
	CTBcallbackTarget0B ()
	CTBcallbackTarget0B (const CTBcallbackTarget0B< T > &rhs)
	CTBcallbackTarget0B (T *p_this, bool(T::*o_func)())
	CTBcallbackTarget0B (const CTBcallbackTarget0B< T > &rhs, T *p_this, bool(T::*o_func)())
void	Configure (T *p_this, bool(T::*o_func)())
void	Connect (CTBcallbackSource0B &source)
void	Disconnect (CTBcallbackSource0B &source)
Private Methods
virtual void	Execute (void *p_arg) const
Private Attributes
T *	mp_this
bool(T::*	mo_func )()

---

Detailed Description

template<class T>
class CTBcallbackTarget0B< T >

Callback target for callbacks with no argument and a boolean return.

For a detailed description of the CTBcallback mechanism look into Using CTBcallback.

Definition at line 39 of file CTBcallbackB.hxx.

---

Constructor & Destructor Documentation

template<class T> CTBcallbackTarget0B< T >::CTBcallbackTarget0B (  )  [inline]

Default constructor, leaves target unconfigured. Definition at line 76 of file CTBcallbackB.icc.

template<class T> CTBcallbackTarget0B< T >::CTBcallbackTarget0B (  const CTBcallbackTarget0B< T > & rhs )  [inline]

Copy constructor, leaves target unconfigured. Definition at line 85 of file CTBcallbackB.icc.

template<class T> CTBcallbackTarget0B< T >::CTBcallbackTarget0B (  T * p_this, bool(T::* o_func)() )  [inline]

Construct and configure. Definition at line 96 of file CTBcallbackB.icc.

template<class T> CTBcallbackTarget0B< T >::CTBcallbackTarget0B (  const CTBcallbackTarget0B< T > & rhs, T * p_this, bool(T::* o_func)() )  [inline]

Copy construct and configure. Definition at line 106 of file CTBcallbackB.icc.

---

Member Function Documentation

template<class T> void CTBcallbackTarget0B< T >::Configure (  T * p_this, bool(T::* o_func)() )  [inline]

Configure target. Definition at line 118 of file CTBcallbackB.icc.

template<class T> void CTBcallbackTarget0B< T >::Connect (  CTBcallbackSource0B & source )  [inline]

Connect to callback source source. Definition at line 129 of file CTBcallbackB.icc.

template<class T> void CTBcallbackTarget0B< T >::Disconnect (  CTBcallbackSource0B & source )  [inline]

Disconnect from callback source source. Definition at line 139 of file CTBcallbackB.icc.

template<class T> void CTBcallbackTarget0B< T >::Execute (  void * p_arg )  const [inline, private, virtual]

Glue code to execute callback in the target class environment. Reimplemented from CTBcallbackTargetBase. Definition at line 150 of file CTBcallbackB.icc.

---

Member Data Documentation

template<class T> T* CTBcallbackTarget0B::mp_this [private]

Definition at line 56 of file CTBcallbackB.hxx.

template<class T> bool (T::* CTBcallbackTarget0B::mo_func)() [private]

---

The documentation for this class was generated from the following files:

• CTBcallbackB.hxx
• CTBcallbackB.icc

---
