CTBcallbackTarget1B Class Template Reference

Callback target for callbacks with one argument and a return value. More...

#include <CTBcallbackB.hxx>

Inheritance diagram for CTBcallbackTarget1B:

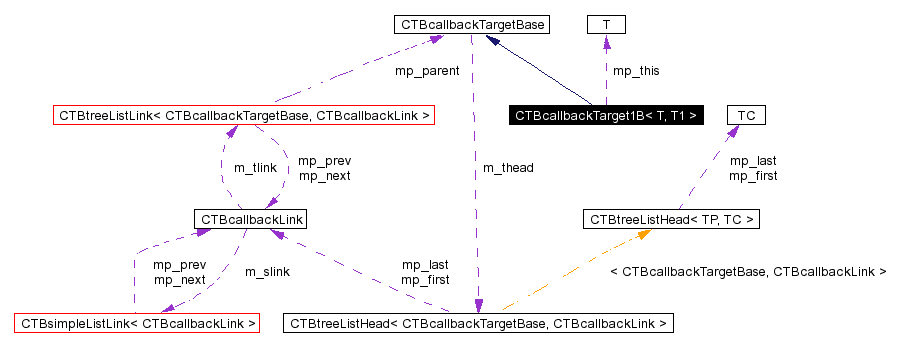

[legend]Collaboration diagram for CTBcallbackTarget1B:

[legend]List of all members.

Public Methods
	CTBcallbackTarget1B ()
	CTBcallbackTarget1B (const CTBcallbackTarget1B< T, T1 > &rhs)
	CTBcallbackTarget1B (T *p_this, bool(T::*o_func)(T1))
	CTBcallbackTarget1B (const CTBcallbackTarget1B< T, T1 > &rhs, T *p_this, bool(T::*o_func)(T1))
void	Configure (T *p_this, bool(T::*o_func)(T1))
void	Connect (CTBcallbackSource1B< T1 > &source)
void	Disconnect (CTBcallbackSource1B< T1 > &source)
Private Methods
virtual void	Execute (void *p_arg) const
Private Attributes
T *	mp_this
bool(T::*	mo_func )(T1)

---

Detailed Description

template<class T, class T1>
class CTBcallbackTarget1B< T, T1 >

Callback target for callbacks with one argument and a return value.

For a detailed description of the CTBcallback mechanism look into Using CTBcallback.

Definition at line 73 of file CTBcallbackB.hxx.

---

Constructor & Destructor Documentation

template<class T, class T1> CTBcallbackTarget1B< T, T1 >::CTBcallbackTarget1B (  )  [inline]

Default constructor, leaves target unconfigured. Definition at line 219 of file CTBcallbackB.icc.

template<class T, class T1> CTBcallbackTarget1B< T, T1 >::CTBcallbackTarget1B (  const CTBcallbackTarget1B< T, T1 > & rhs )  [inline]

Copy constructor, leaves target unconfigured. Definition at line 228 of file CTBcallbackB.icc.

template<class T, class T1> CTBcallbackTarget1B< T, T1 >::CTBcallbackTarget1B (  T * p_this, bool(T::* o_func)(T1) )  [inline]

Construct and configure. Definition at line 239 of file CTBcallbackB.icc.

template<class T, class T1> CTBcallbackTarget1B< T, T1 >::CTBcallbackTarget1B (  const CTBcallbackTarget1B< T, T1 > & rhs, T * p_this, bool(T::* o_func)(T1) )  [inline]

Copy construct and configure. Definition at line 249 of file CTBcallbackB.icc.

---

Member Function Documentation

template<class T, class T1> void CTBcallbackTarget1B< T, T1 >::Configure (  T * p_this, bool(T::* o_func)(T1) )  [inline]

Configure target. Definition at line 261 of file CTBcallbackB.icc.

template<class T, class T1> void CTBcallbackTarget1B< T, T1 >::Connect (  CTBcallbackSource1B< T1 > & source )  [inline]

Connect to callback source source. Definition at line 273 of file CTBcallbackB.icc.

template<class T, class T1> void CTBcallbackTarget1B< T, T1 >::Disconnect (  CTBcallbackSource1B< T1 > & source )  [inline]

Disconnect from callback source source. Definition at line 284 of file CTBcallbackB.icc.

template<class T, class T1> void CTBcallbackTarget1B< T, T1 >::Execute (  void * p_arg )  const [inline, private, virtual]

Glue code to execute callback in the target class environment. Reimplemented from CTBcallbackTargetBase. Definition at line 295 of file CTBcallbackB.icc.

---

Member Data Documentation

template<class T, class T1> T* CTBcallbackTarget1B::mp_this [private]

Definition at line 92 of file CTBcallbackB.hxx.

template<class T, class T1> bool (T::* CTBcallbackTarget1B::mo_func)(T1) [private]

---

The documentation for this class was generated from the following files:

• CTBcallbackB.hxx
• CTBcallbackB.icc

---
