CTBcallbackTarget2 Class Template Reference

Callback target for callbacks with two arguments. More...

#include <CTBcallback.hxx>

Inheritance diagram for CTBcallbackTarget2:

Inheritance graph
[legend]

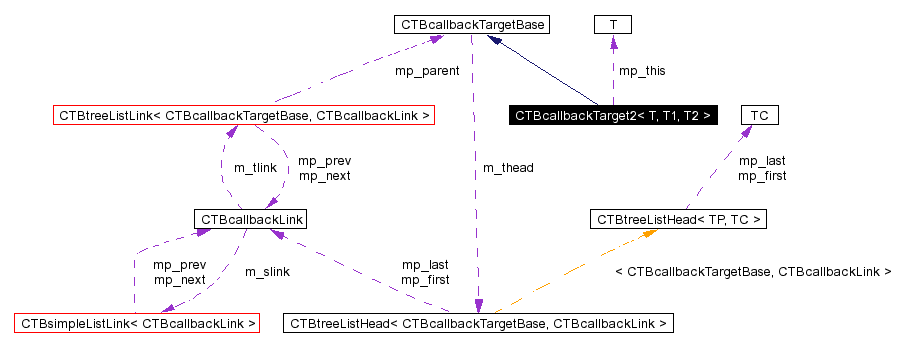

Collaboration diagram for CTBcallbackTarget2:

Collaboration graph
[legend]
List of all members.

Public Methods

 CTBcallbackTarget2 ()
 CTBcallbackTarget2 (const CTBcallbackTarget2< T, T1, T2 > &rhs)
 CTBcallbackTarget2 (T *p_this, void(T::*o_func)(T1, T2))
 CTBcallbackTarget2 (const CTBcallbackTarget2< T, T1, T2 > &rhs, T *p_this, void(T::*o_func)(T1, T2))
void Configure (T *p_this, void(T::*o_func)(T1, T2))
void Connect (CTBcallbackSource2< T1, T2 > &source)
void Disconnect (CTBcallbackSource2< T1, T2 > &source)

Private Methods

virtual void Execute (void *p_arg) const

Private Attributes

T * mp_this
void(T::* mo_func )(T1, T2)

Detailed Description

template<class T, class T1, class T2>
class CTBcallbackTarget2< T, T1, T2 >

Callback target for callbacks with two arguments.

For a detailed description of the CTBcallback mechanism look into Using CTBcallback.

Definition at line 95 of file CTBcallback.hxx.

Constructor & Destructor Documentation

template<class T, class T1, class T2>
CTBcallbackTarget2< T, T1, T2 >::CTBcallbackTarget2 (  )  [inline]


Default constructor, leaves target unconfigured.

Definition at line 298 of file CTBcallback.icc.

template<class T, class T1, class T2>
CTBcallbackTarget2< T, T1, T2 >::CTBcallbackTarget2 (  const CTBcallbackTarget2< T, T1, T2 > & rhs )  [inline]


Copy construct, leaves target unconfigured.

Definition at line 307 of file CTBcallback.icc.

template<class T, class T1, class T2>
CTBcallbackTarget2< T, T1, T2 >::CTBcallbackTarget2 (  T * p_this,
void(T::* o_func)(T1, T2)
)  [inline]


Construct and configure.

Definition at line 318 of file CTBcallback.icc.

template<class T, class T1, class T2>
CTBcallbackTarget2< T, T1, T2 >::CTBcallbackTarget2 (  const CTBcallbackTarget2< T, T1, T2 > & rhs,
T * p_this,
void(T::* o_func)(T1, T2)
)  [inline]


Copy construct and configure.

Definition at line 328 of file CTBcallback.icc.

Member Function Documentation

template<class T, class T1, class T2>
void CTBcallbackTarget2< T, T1, T2 >::Configure (  T * p_this,
void(T::* o_func)(T1, T2)
)  [inline]


Configure target.

Definition at line 340 of file CTBcallback.icc.

template<class T, class T1, class T2>
void CTBcallbackTarget2< T, T1, T2 >::Connect (  CTBcallbackSource2< T1, T2 > & source )  [inline]


Connect to callback source source.

Definition at line 352 of file CTBcallback.icc.

template<class T, class T1, class T2>
void CTBcallbackTarget2< T, T1, T2 >::Disconnect (  CTBcallbackSource2< T1, T2 > & source )  [inline]


Disconnect from callback source source.

Definition at line 363 of file CTBcallback.icc.

template<class T, class T1, class T2>
void CTBcallbackTarget2< T, T1, T2 >::Execute (  void * p_arg )  const [inline, private, virtual]


Glue code to execute callback in the target class environment.

Reimplemented from CTBcallbackTargetBase.

Definition at line 374 of file CTBcallback.icc.

Member Data Documentation

template<class T, class T1, class T2>
T* CTBcallbackTarget2::mp_this [private]


Definition at line 112 of file CTBcallback.hxx.

template<class T, class T1, class T2>
void (T::* CTBcallbackTarget2::mo_func)(T1,T2) [private]


The documentation for this class was generated from the following files:
