CTBcallbackTarget0 Class Template Reference

Callback target for callbacks with no argument. More...

#include <CTBcallback.hxx>

Inheritance diagram for CTBcallbackTarget0:

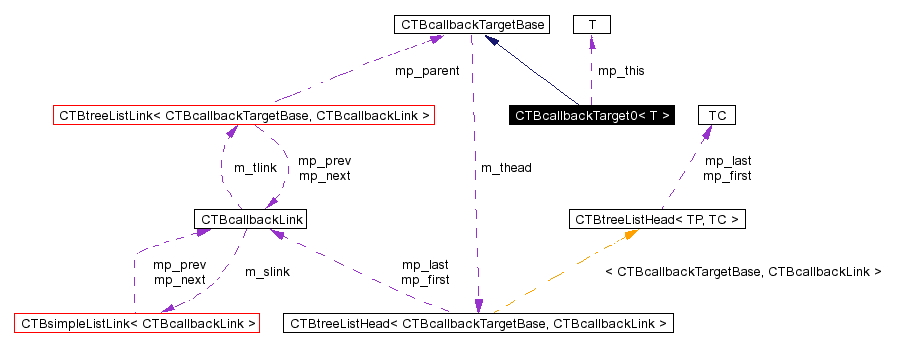

[legend]Collaboration diagram for CTBcallbackTarget0:

[legend]List of all members.

Public Methods
	CTBcallbackTarget0 ()
	CTBcallbackTarget0 (const CTBcallbackTarget0< T > &rhs)
	CTBcallbackTarget0 (T *p_this, void(T::*o_func)())
	CTBcallbackTarget0 (const CTBcallbackTarget0< T > &rhs, T *p_this, void(T::*o_func)())
void	Configure (T *p_this, void(T::*o_func)())
void	Connect (CTBcallbackSource0 &source)
void	Disconnect (CTBcallbackSource0 &source)
Private Methods
virtual void	Execute (void *p_arg) const
Private Attributes
T *	mp_this
void(T::*	mo_func )()

---

Detailed Description

template<class T>
class CTBcallbackTarget0< T >

Callback target for callbacks with no argument.

For a detailed description of the CTBcallback mechanism look into Using CTBcallback.

Definition at line 27 of file CTBcallback.hxx.

---

Constructor & Destructor Documentation

template<class T> CTBcallbackTarget0< T >::CTBcallbackTarget0 (  )  [inline]

Default constructor, leaves target unconfigured. Definition at line 46 of file CTBcallback.icc.

template<class T> CTBcallbackTarget0< T >::CTBcallbackTarget0 (  const CTBcallbackTarget0< T > & rhs )  [inline]

Copy construct, leaves target unconfigured. Definition at line 55 of file CTBcallback.icc.

template<class T> CTBcallbackTarget0< T >::CTBcallbackTarget0 (  T * p_this, void(T::* o_func)() )  [inline]

Construct and configure. Definition at line 66 of file CTBcallback.icc.

template<class T> CTBcallbackTarget0< T >::CTBcallbackTarget0 (  const CTBcallbackTarget0< T > & rhs, T * p_this, void(T::* o_func)() )  [inline]

Copy construct and configure. Definition at line 76 of file CTBcallback.icc.

---

Member Function Documentation

template<class T> void CTBcallbackTarget0< T >::Configure (  T * p_this, void(T::* o_func)() )  [inline]

Configure target. Definition at line 88 of file CTBcallback.icc.

template<class T> void CTBcallbackTarget0< T >::Connect (  CTBcallbackSource0 & source )  [inline]

Connect to callback source source. Definition at line 100 of file CTBcallback.icc.

template<class T> void CTBcallbackTarget0< T >::Disconnect (  CTBcallbackSource0 & source )  [inline]

Disconnect from callback source source. Definition at line 110 of file CTBcallback.icc.

template<class T> void CTBcallbackTarget0< T >::Execute (  void * p_arg )  const [inline, private, virtual]

Glue code to execute callback in the target class environment. Reimplemented from CTBcallbackTargetBase. Definition at line 120 of file CTBcallback.icc.

---

Member Data Documentation

template<class T> T* CTBcallbackTarget0::mp_this [private]

Definition at line 44 of file CTBcallback.hxx.

template<class T> void (T::* CTBcallbackTarget0::mo_func)() [private]

---

The documentation for this class was generated from the following files:

• CTBcallback.hxx
• CTBcallback.icc

---
