CTBcallbackTarget1R Class Template Reference

Callback target for callbacks with one argument and a return value. More...

#include <CTBcallbackR.hxx>

Inheritance diagram for CTBcallbackTarget1R:

Inheritance graph
[legend]

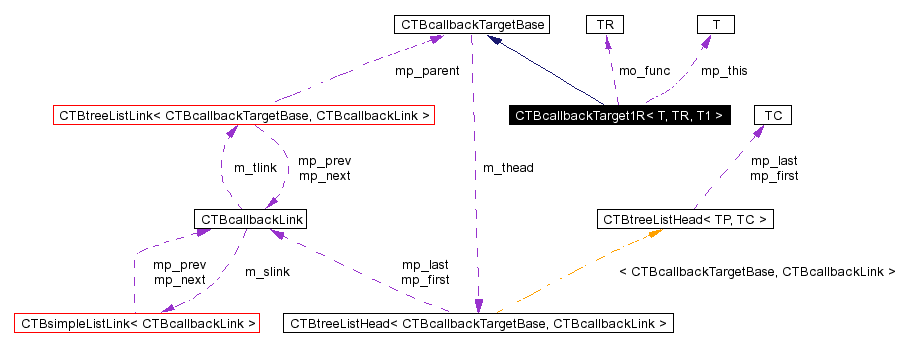

Collaboration diagram for CTBcallbackTarget1R:

Collaboration graph
[legend]
List of all members.

Public Methods

 CTBcallbackTarget1R ()
 CTBcallbackTarget1R (const CTBcallbackTarget1R< T, TR, T1 > &rhs)
 CTBcallbackTarget1R (T *p_this, TR(T::*o_func)(T1))
 CTBcallbackTarget1R (const CTBcallbackTarget1R< T, TR, T1 > &rhs, T *p_this, TR(T::*o_func)(T1))
void Configure (T *p_this, TR(T::*o_func)(T1))
void Connect (CTBcallbackSource1R< TR, T1 > &source)
void Disconnect (CTBcallbackSource1R< TR, T1 > &source)

Private Methods

virtual void Execute (void *p_arg) const

Private Attributes

T * mp_this
TR(T::* mo_func )(T1)

Detailed Description

template<class T, class TR, class T1>
class CTBcallbackTarget1R< T, TR, T1 >

Callback target for callbacks with one argument and a return value.

For a detailed description of the CTBcallback mechanism look into Using CTBcallback.

Definition at line 66 of file CTBcallbackR.hxx.

Constructor & Destructor Documentation

template<class T, class TR, class T1>
CTBcallbackTarget1R< T, TR, T1 >::CTBcallbackTarget1R (  )  [inline]


Default constructor, leaves target unconfigured.

Definition at line 191 of file CTBcallbackR.icc.

template<class T, class TR, class T1>
CTBcallbackTarget1R< T, TR, T1 >::CTBcallbackTarget1R (  const CTBcallbackTarget1R< T, TR, T1 > & rhs )  [inline]


Copy constructor, leaves target unconfigured.

Definition at line 200 of file CTBcallbackR.icc.

template<class T, class TR, class T1>
CTBcallbackTarget1R< T, TR, T1 >::CTBcallbackTarget1R (  T * p_this,
TR(T::* o_func)(T1)
)  [inline]


Construct and configure.

Definition at line 211 of file CTBcallbackR.icc.

template<class T, class TR, class T1>
CTBcallbackTarget1R< T, TR, T1 >::CTBcallbackTarget1R (  const CTBcallbackTarget1R< T, TR, T1 > & rhs,
T * p_this,
TR(T::* o_func)(T1)
)  [inline]


Copy construct and configure.

Definition at line 221 of file CTBcallbackR.icc.

Member Function Documentation

template<class T, class TR, class T1>
void CTBcallbackTarget1R< T, TR, T1 >::Configure (  T * p_this,
TR(T::* o_func)(T1)
)  [inline]


Configure target.

Definition at line 233 of file CTBcallbackR.icc.

template<class T, class TR, class T1>
void CTBcallbackTarget1R< T, TR, T1 >::Connect (  CTBcallbackSource1R< TR, T1 > & source )  [inline]


Connect to callback source source.

Definition at line 245 of file CTBcallbackR.icc.

template<class T, class TR, class T1>
void CTBcallbackTarget1R< T, TR, T1 >::Disconnect (  CTBcallbackSource1R< TR, T1 > & source )  [inline]


Disconnect from callback source source.

Definition at line 256 of file CTBcallbackR.icc.

template<class T, class TR, class T1>
void CTBcallbackTarget1R< T, TR, T1 >::Execute (  void * p_arg )  const [inline, private, virtual]


Glue code to execute callback in the target class environment.

Reimplemented from CTBcallbackTargetBase.

Definition at line 267 of file CTBcallbackR.icc.

Member Data Documentation

template<class T, class TR, class T1>
T* CTBcallbackTarget1R::mp_this [private]


Definition at line 85 of file CTBcallbackR.hxx.

template<class T, class TR, class T1>
TR (T::* CTBcallbackTarget1R::mo_func)(T1) [private]


The documentation for this class was generated from the following files:
