CTBsimpleListHead Class Template Reference

List header for a doubly linked list (with header pointer in element). More...

#include <CTBsimpleList.hxx>

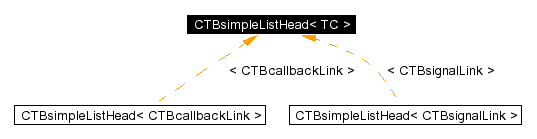

Inheritance diagram for CTBsimpleListHead:

[legend]Collaboration diagram for CTBsimpleListHead:

[legend]List of all members.

Public Methods
	CTBsimpleListHead ()
	~CTBsimpleListHead ()
TC *	First () const
TC *	Last () const
bool	operator! () const
	operator bool () const
Private Methods
	CTBsimpleListHead (const CTBsimpleListHead< TC > &rhs)
CTBsimpleListHead< TC > &	operator= (const CTBsimpleListHead< TC > &rhs)
Private Attributes
TC *	mp_first
TC *	mp_last
Friends
class	CTBsimpleListLink< TC >

---

Detailed Description

template<class TC>
class CTBsimpleListHead< TC >

List header for a doubly linked list (with header pointer in element).

For a detailed description see class CTBsimpleListLink .

Definition at line 67 of file CTBsimpleList.hxx.

---

Constructor & Destructor Documentation

template<class TC> CTBsimpleListHead< TC >::CTBsimpleListHead (  )  [inline]

Default constructor, results in empty list. Definition at line 315 of file CTBsimpleList.icc.

template<class TC> CTBsimpleListHead< TC >::~CTBsimpleListHead (  )  [inline]

Destructor. The list must be empty by the time the destructor is executed. It is the responsibility of the destructor of the class embedding the CTBsimpleListHead object to remove all elements from the list and decide about ownership and live time of those objects. If the embedding class does not control the live time of the list objects a typical cleanup code look like hd::~hd() { while (m_head) m_head.First()->Remove(&el::m_link); } If the embedding class owns the linked objects and is therefore obliged to delete them a typical cleanup code look like hd::~hd() { while (m_head) delete m_head.First(); } Definition at line 349 of file CTBsimpleList.icc.

template<class TC> CTBsimpleListHead< TC >::CTBsimpleListHead (  const CTBsimpleListHead< TC > & rhs )  [private]

---

Member Function Documentation

template<class TC> TC * CTBsimpleListHead< TC >::First (  )  const [inline]

Returns a pointer to the first list element, or null if empty. A typical head-to-tail traversal of a list is implemented like for (el* p = m_head.First(); p; p = p->m_link.Next()) {...} Definition at line 364 of file CTBsimpleList.icc. Referenced by CTBcallbackSourceBase::Execute(), CTBcallbackSourceBase::NConnect(), and CTBcallbackSourceBase::~CTBcallbackSourceBase().

template<class TC> TC * CTBsimpleListHead< TC >::Last (  )  const [inline]

Returns a pointer to the last list element, or null if empty. A typical tail-to-head traversal of a list is implemented like for (el* p = m_head.Last(); p; p = p->m_link.Prev()) {...} Definition at line 379 of file CTBsimpleList.icc.

template<class TC> bool CTBsimpleListHead< TC >::operator! (  )  const [inline]

Returns true if list is empty. Definition at line 388 of file CTBsimpleList.icc.

template<class TC> CTBsimpleListHead< TC >::operator bool (  )  const [inline]

Returns true if at least one element in list. Definition at line 397 of file CTBsimpleList.icc.

template<class TC> CTBsimpleListHead<TC>& CTBsimpleListHead< TC >::operator= (  const CTBsimpleListHead< TC > & rhs )  [private]

---

Friends And Related Function Documentation

template<class TC> friend class CTBsimpleListLink< TC > [friend]

Definition at line 69 of file CTBsimpleList.hxx.

---

Member Data Documentation

template<class TC> TC* CTBsimpleListHead::mp_first [private]

Definition at line 92 of file CTBsimpleList.hxx.

template<class TC> TC* CTBsimpleListHead::mp_last [private]

Definition at line 93 of file CTBsimpleList.hxx.

---

The documentation for this class was generated from the following files:

• CTBsimpleList.hxx
• CTBsimpleList.icc

---
